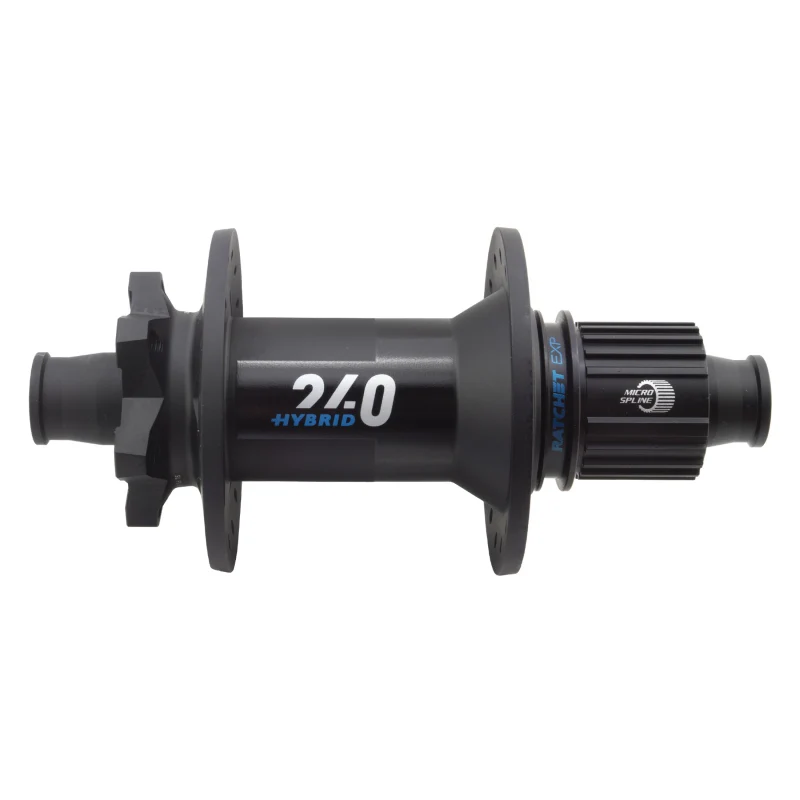

Dt swiss 240 Hybrid hub rear 32H 148

The 240 Hybrid hub is built for an extended eMTB adventure. The unique design incorporates special components like the DTSwiss Ratchet EXP OS system with 30 teeth to ensure reliable power transmission from both the rider and the motor to the ground. The drive side bearing is bigger and the hub flange is enlarged. The spoke holes are expanded purpose-built for 2.34 mm DT Swiss spokes which deliver enhanced resistance to acceleration and braking torques. Crafted from hardened steel the freehub system further reinforces the hub's resilience allowing for extended and trouble-free e-bike rides.

Increased wall thickness

Oversize spoke interface

Oversize hub shell

Hybrid specific 24t steel ratchets

Rear Axle	12mm Thru x 148mm
Cassette Body Type	Shimano Micro Spline
Color	Black
Skewer Included	No
Bearing Type	Sealed Cartridge
Designed for ebike	Yes
Defined Color	Black
Spoke Interface	J-Bend
keyword search	electric bikes, electric bicycle, e-bike, e-bikes
Hub Drilling	32
Hub/Brake Compatibility	6-Bolt Disc
Axle Size	12 X 148Mm
Brake Compatability	6-Bolt
Ratchet Points	30Pt
