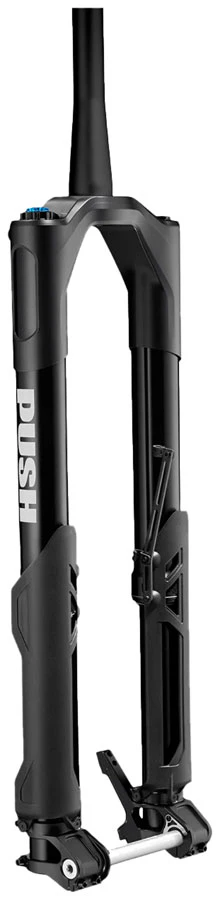

PUSH Industries Nine One V2 Inverted Coil Suspension Fork - 29" 170 mm 15 x 110mm 44mm Offset 45 lb. Spring Bronze/Graphite BLK

The Push Industries inverted Nine One V2 fork is designed to deliver true coil-spring performance that's consistent controlled and uncompromised. It features a completely submerged sliding bushing system that delivers unmatched sensitivity and control in the roughest conditions by keeping friction low. In addition the Sub Chamber provides uncompromised performance with instant on-the-fly midstroke support adjustment and the decoupled Hydraulic Bottom Out System offers control at the end of travel without giving up comfort everywhere else. The result is a fork that stays plush controlled and predictable.

Premium inverted coil‑sprung fork engineered for exceptional sensitivity and traction

Submerged Bushing System minimizes friction and maintains smoothness under heavy and high-impact loads that create harshness breaks traction and rapidly increases rider fatigue

Increased bushing overlap introduces a decreasing leverage effect maintaining a smooth consistent feel through the full range of travel and the superior bushing support minimizes friction providing a smoother and more plush initial travel

Sub Chamber switch provides instant mid‑stroke support for steep or rough terrain that provides riders the freedom to tune their ride in real time - No Tools No Down Time

KS's decoupled Hydraulic Bottom Out System adds a dedicated increase in compression damping for the last 70mm of travel activating only when you need it

The decoupled Hydraulic Bottom Out System also allows riders to run a lighter spring and damper settings for a smoother more compliant ride while still having the protection to take on

Steerer Type	Tapered
Lockout Switch	Shock Mounted Switch
Brake Type	Post Mount 180
Travel (mm)	170
Offset	44
Axle to Crown Length	581
Front Axle	15mm Thru x 110mm
Maximum Tire Width	66
S.H.I.S. Stem Clamp Diameter	28.6
Color	Burnt Bronze/Graphite Black
Crown Race	40
Weight	2800
Wheel Size	29"
Designed for ebike	Yes
External Adjustments	Rebound Damping
Defined Color	Brown
Positive Spring	Coil
Stanchion Diameter	36
